# Installation

Let's wire up and connect AIRLink Telemetry

### Ground module

Take the ground module, antennas and power cable:

<figure><img src="https://449459530-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MTMlWysgDtJq8Hid1v7%2Fuploads%2FQNuaPMBNgQRkAvB9yCwv%2F9.jpg?alt=media&amp;token=6086d58d-2637-4d96-a7c4-b5d665b97878" alt=""><figcaption></figcaption></figure>

Attach the antennas to the ground module. Connect the power cable.&#x20;

<figure><img src="https://449459530-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MTMlWysgDtJq8Hid1v7%2Fuploads%2FOX84CR8Pmm51gRJkCXDF%2F10.jpg?alt=media&amp;token=d55b2a3a-b50c-4b66-9753-44960bc53169" alt=""><figcaption></figcaption></figure>

{% hint style="danger" %}
**DANGER:** DO NOT POWER ON THE MODULE WITHOUT ANTENNAS, THIS WILL CAUSE PERMANENT DAMAGE AND IS NOT COVERED BY THE WARRANTY
{% endhint %}

### Air module

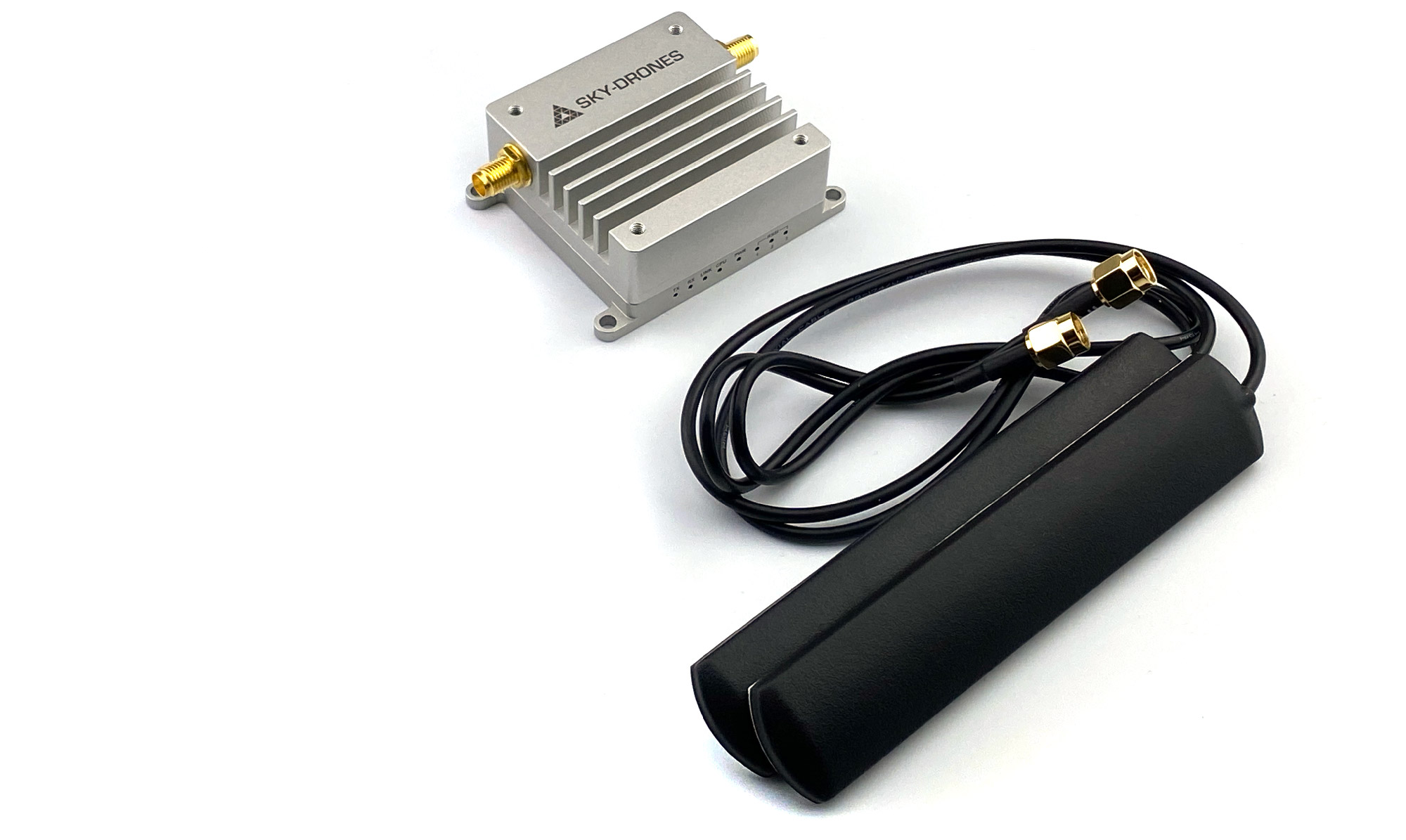

Take air module and air module antennas:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOEhvy1M_7X7lcDHiW%2FIMG_2908.jpg?alt=media\&token=2a2eae9b-37a9-4f51-b0bc-62b29a129297)

Connect air module antennas:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOF26bMwDkSdKaNW60%2FIMG_2909.jpg?alt=media\&token=4c76c4cb-1a37-46f9-a5c0-eb616ae94df4)

Take Ethernet telemetry cable and connect it to the Ethernet port of Air module:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOFOOAv2pilKjDXIDI%2FIMG_2910.jpg?alt=media\&token=355ebacd-202c-41d9-83f9-2d9303c9378c)

Fully assembled Air module will looks as follows:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOFgkzO5YBkw9zZ2US%2FIMG_2913.jpg?alt=media\&token=07f609c4-2db0-4f88-9349-ec56f9d8f7ce)

### Connecting to AIRLink

Connect Air module Ethernet cable to Ethernet port of AIRLink:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOHlIInAgRb0AiNDNR%2FIMG_2915.jpg?alt=media\&token=236200c0-cc25-4bd6-9cca-6f309e81c2ef)

{% hint style="info" %}
It's recommended to twist Ethernet cable to increase the EMI sustainability.&#x20;
{% endhint %}

The assembled systems should looks as follows:&#x20;

![](https://449459530-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTMlWysgDtJq8Hid1v7%2F-MdO6g43JAme6t44Pamr%2F-MdOIiWwm5hYcDilL8kF%2FIMG_2918.jpg?alt=media\&token=75fad43e-7625-454c-96ac-48de30083348)
