RTK GNSS

PreviousStandard GNSSNextUpdating GNSS Module

Last updated 3 years ago

Was this helpful?

Specifications

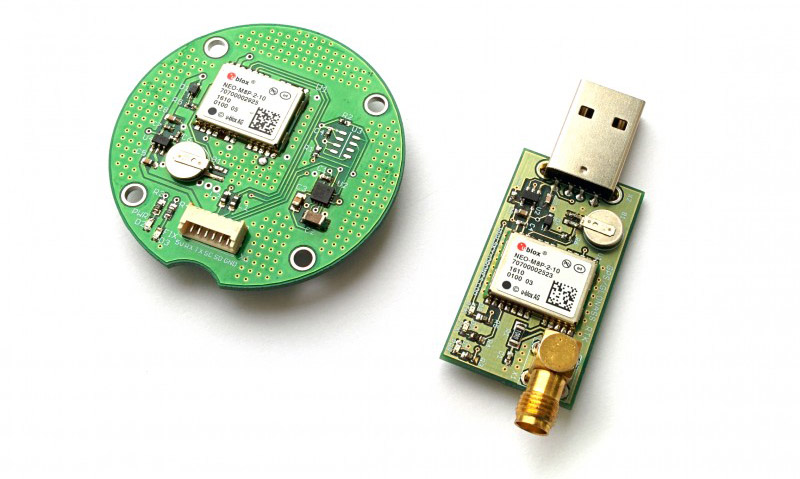

This GNSS (GPS + GLONASS) module is base on RTK technology and was specially developed for and is intended to be used in applications where precise positioning really matters. It's based on the latest and most precise UBlox Neo M8P chipset which provides outstanding position accuracy. The set includes a base station module with external active patch antenna, an airborne module with integrated patch antenna, and a set of cables.

Real Time Kinematic (RTK) satellite navigation is a technique used to enhance the precision of position data derived from satellite-based positioning systems (global navigation satellite systems, GNSS). It uses measurements from a phase of the signal carrier waves, rather than the information content of the signal, and relies on a single reference station or interpolated virtual station to provide real-time corrections, providing up to centimetre-level accuracy.

Features

  • Centimeter‑level GNSS positioning

  • Integrated Real Time Kinematics (RTK)

  • Smallest, lightest, and energy‑efficient RTK module

  • Complete and versatile solution due to base and rover variants

  • World‑leading GNSS positioning technology

  • UBlox NEO M8P chipset based

  • 25mm ceramic patch antenna

  • GPS / GLONASS support

  • Up to 24 satellites

  • 18 / 10 Hz update rate (GPS / GPS + GLONASS)

  • Rechargeable 3V lithium backup battery

  • Ultra-Low noise 3.3V regulator

  • Power and fix indicator LEDs

  • Exposed RX, TX, 5V and GND pads

  • Integrated magnetometer on airborne module - HMC5883L

  • UART port for GPS interface

  • USB for base station module

  • Airborne module cable length 30cm

Package includes

  • Base station module

  • Active patch antenna for base station module

  • Airborne module with integrated patch antenna

  • Connection cable

Fully compatible with

SmartAP Autopilots
SmartAP Autopilot
