Logs Analysis

PreviousRTK GNSSNextGeotag Images

Last updated 3 years ago

Was this helpful?

allows users to view, analyse, and export logs recorded on their SD card located in the flight controller.

To view your logs, go to the SmartAP GCS app > Plot tab in the left-hand menu.

Once you've switched to the "Plot" tab, click "Settings" in the top-right corner and select Open log file:

Select the log file you would like to analyse from the system file dialog and click Open. You will see the log with all the available parameters. Choose your desired fields to plot them:

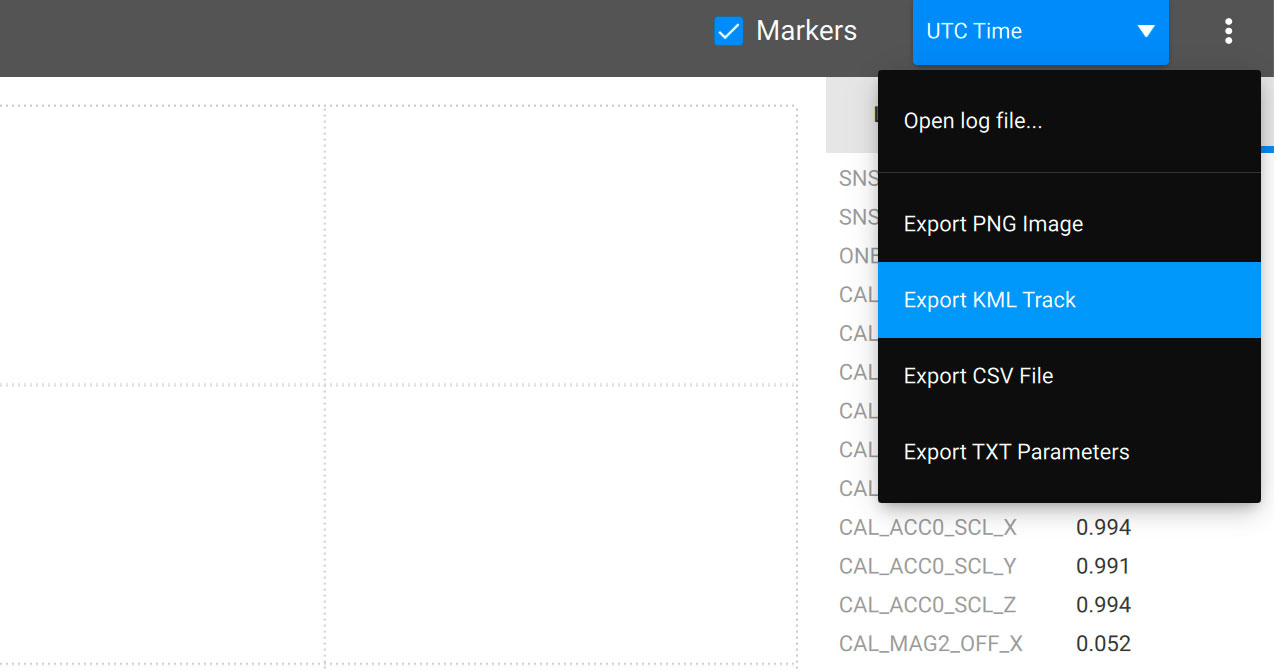

If you would like to export the log data as an image, KML track, or CSV file for further analysis, simply click "Settings" in the top-right corner and select the preferred option:
